Avanti JXN-26 Series
Experience simplified high-throughput sample processing and more control with the Avanti® JXN-26. Rely on the powerful features, improved imbalance tolerance, and quiet performance.
The Avanti JXN-26 stands out with these enhanced features:
- Monitoring and control flexibility with MobileFuge
- Advanced, easy-to-use data management
- Ergonomic design
- Intuitive interface
Choose an Avanti JXN-26 Model
| Tech Docs | Part Number | Product Name | Max Speed | Max g-Force | Maximum | BioSafe | List Price | Buy |
|---|---|---|---|---|---|---|---|---|
|
26,000 rpm
|
| to 81,700.00|x g
|
1.00|6.00|L
|
Yes
|
- |
||||
|
26,000 rpm
|
| to 81,700.00|x g
|
1.00|6.00|L
|
Yes
|
- |
||||
|
ERROR: Field "Maximum Speed" does not exist on this item |
ERROR: Field "Maximum g-Force" does not exist on this item |
1.00|4.00|L
|
Yes
|
- |
||||
|
26,000 rpm
|
| to 81,700.00|x g
|
1.00|6.00|L
|
Yes
|
- |
||||
|
26,000 rpm
|
| to 81,700.00|x g
|
1.00|6.00|L
|
Yes
|
- |
||||
|
26,000 rpm
|
| to 81,700.00|x g
|
1.00|4.00|L
|
Yes
|
- |
Features
Data Management Provides Traceability
- Ideal for supporting numerous protocols in shared labs or GMP environments
- Utilize data logging and real-time run graphing
- Password protection for up to 50 unique user profiles
- Network multiple instruments
- Set up and store numerous protocols
Application Versatility
- Temperature control is optimized ensuring sample quality and avoiding unwanted artifacts

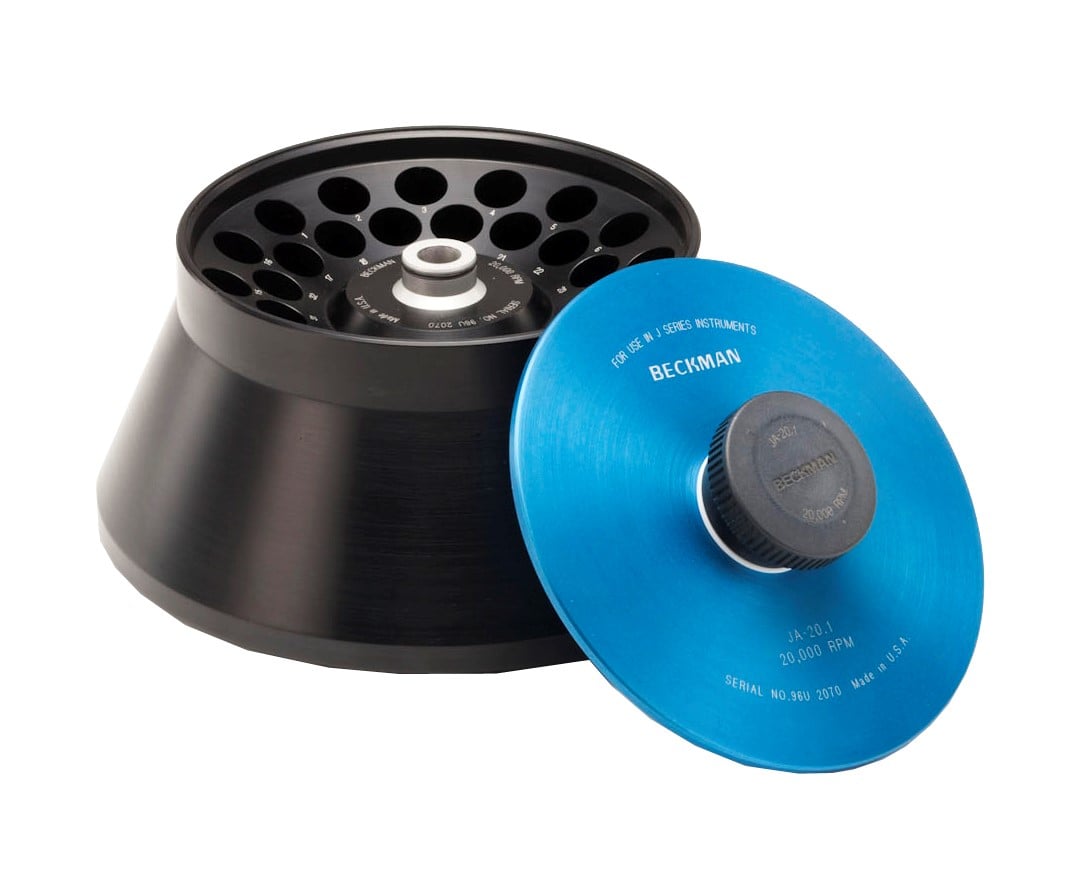

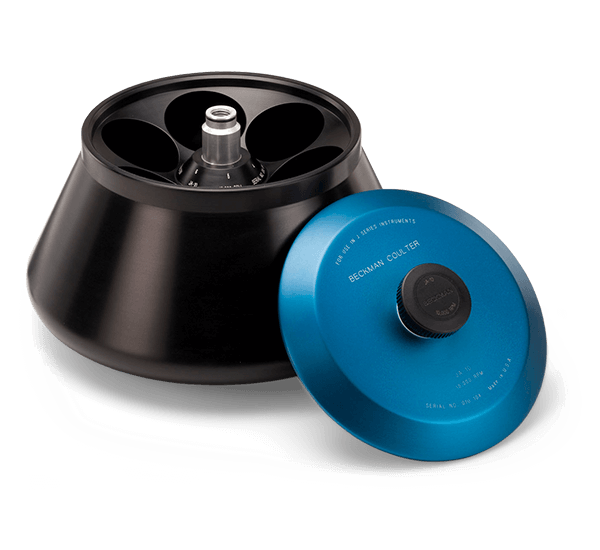

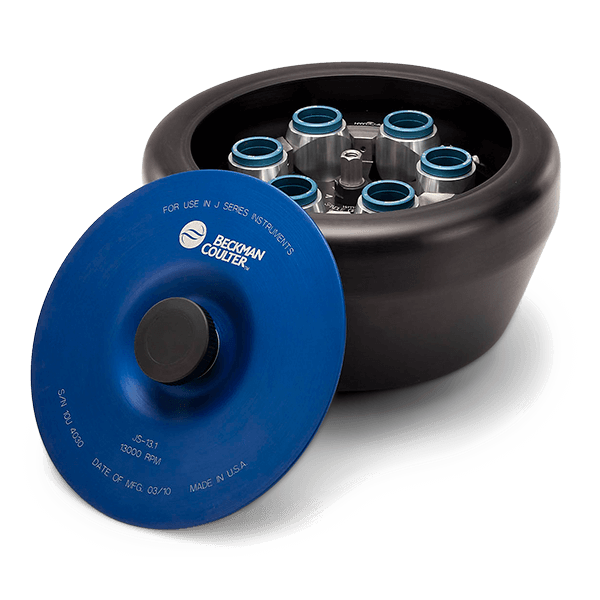

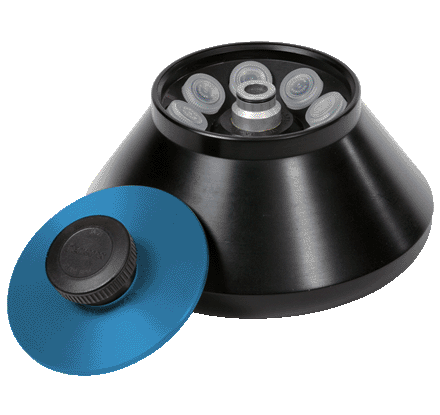

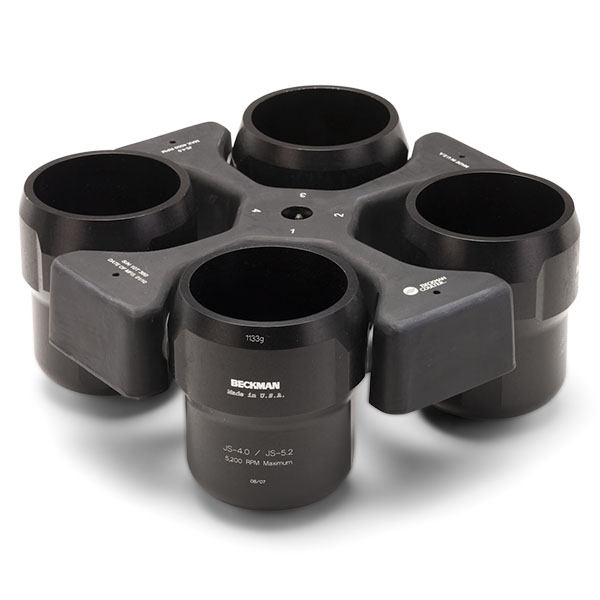

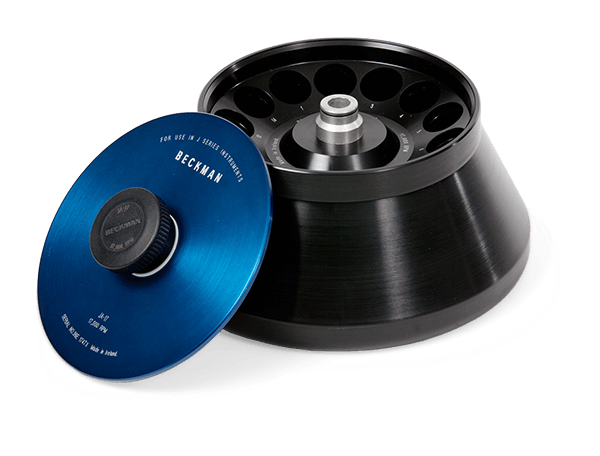

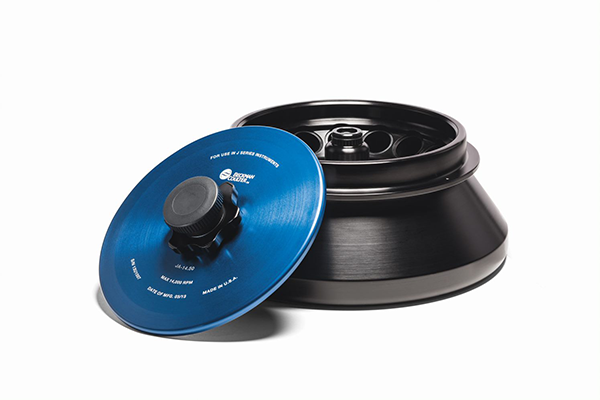

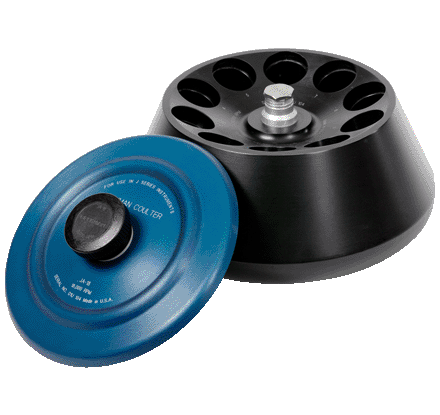

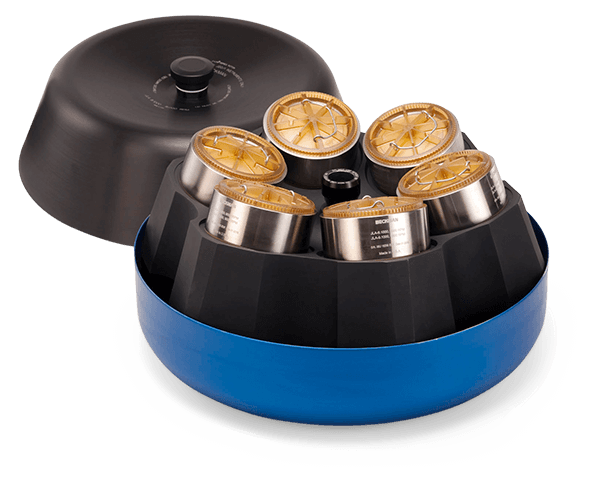

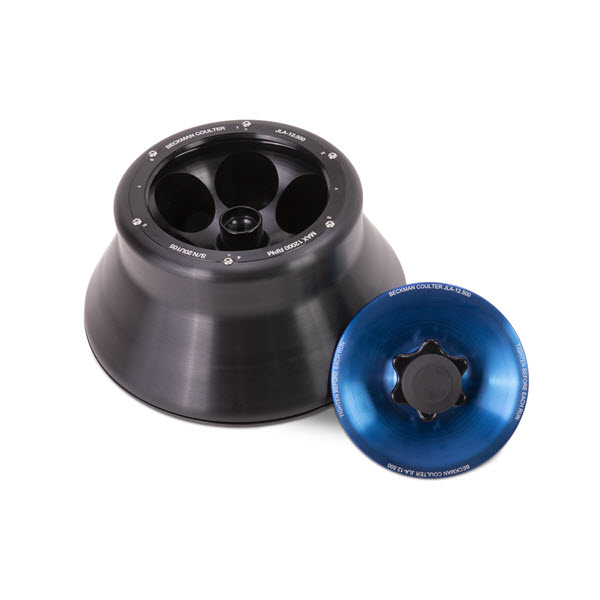

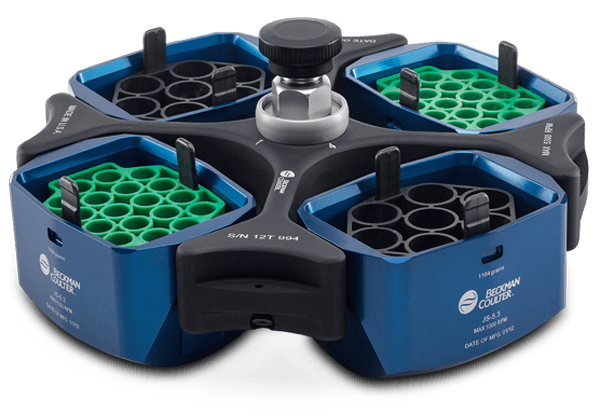

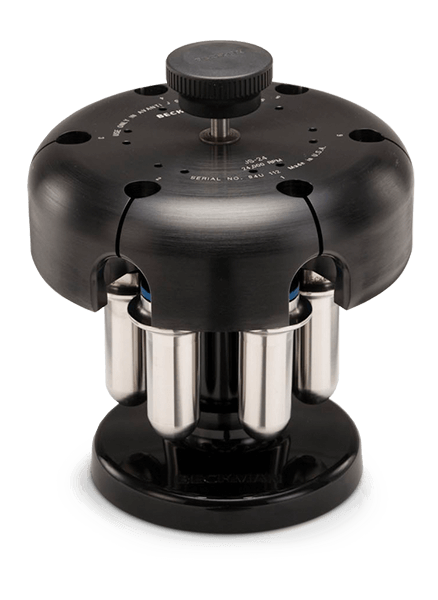

- Compatible with an extensive library of rotors, including fixed-angle and swinging bucket
- Adaptable for numerous application and workflow needs – includes BioSafe system providing operator safety and sample protection
- Broad labware range including Harvest Liners provide a complete sample protection solution.
Safe and Sustainable
- Dynamic Rotor Inertia Check (DRIC) and rotor recognition provide redundant safety checks to assure no rotor can be run above its rated speed
- High-torque, Switched Reluctance (SR) drive cycle shortens cycle times
- Uses less energy than traditional centrifuges
Easy to use software
- Simultaneous display of set and actual run conditions
- Rotor selection by name (not code)
- 11 acceleration/12 deceleration rates
- Delay start
- Run times to 99:59, Hold, and ω2t integrator for applications requiring precise reproducibility
Product Specifications
| BioSafe | Yes |
| Acceleration | 11 acceleration profiles |
| Deceleration | 12 profiles |
| Speed Control | ±|10.00|rpm of set speed or 0.1%, whichever is greater |
| Timed Run | Up to 99 hrs, 59 mins |
| Max Capacity Volume Range | 1.00|6.00|L |
| Temperature Control | ± 2|°C of set temperature after equilibration |
| Temperature Range(s) | 10°C - 40°C in 1 degree increments |
